Supplementary implantation system

Existing implant system

Any conventional system

For limited bone

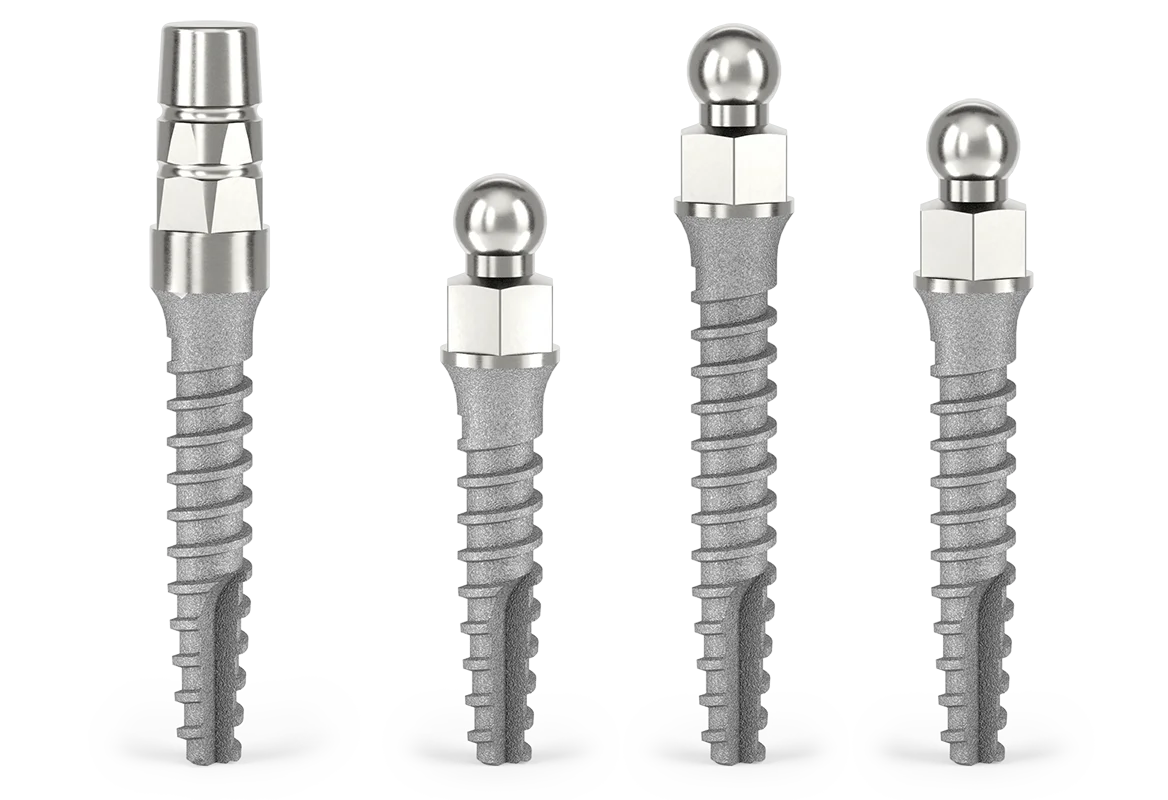

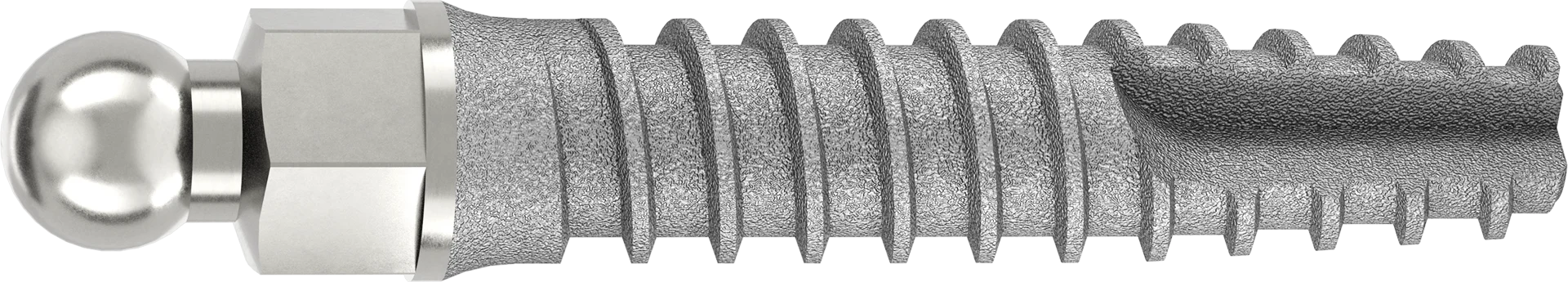

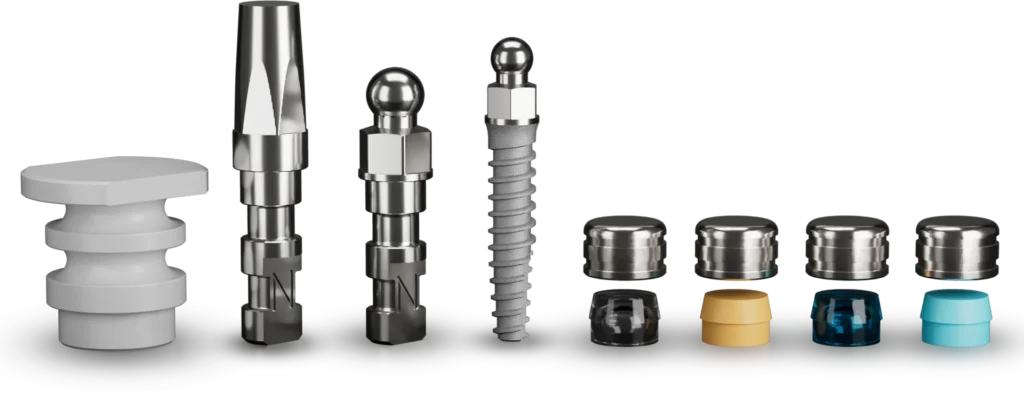

Minicare - mini implant system

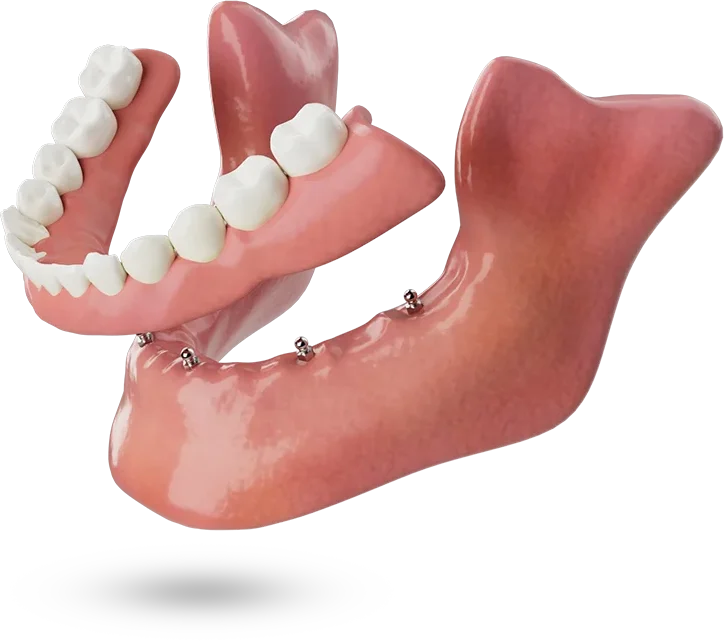

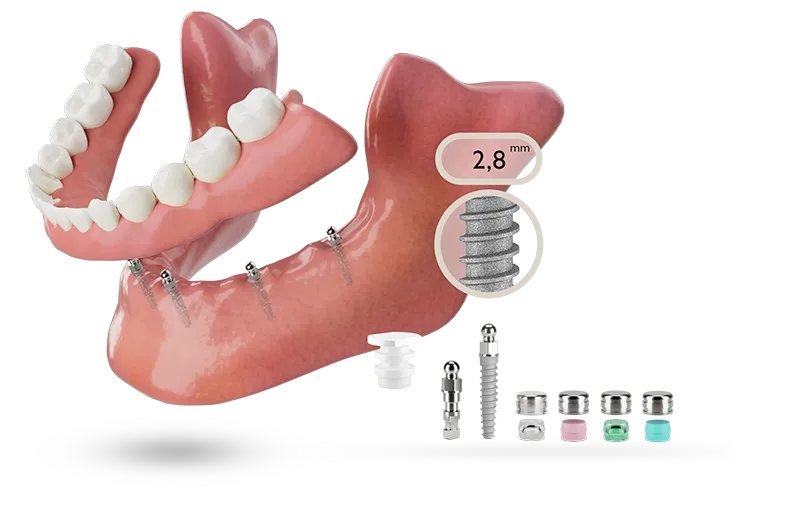

For removable dentures

Minicare - mini implant system

Developed for special situations

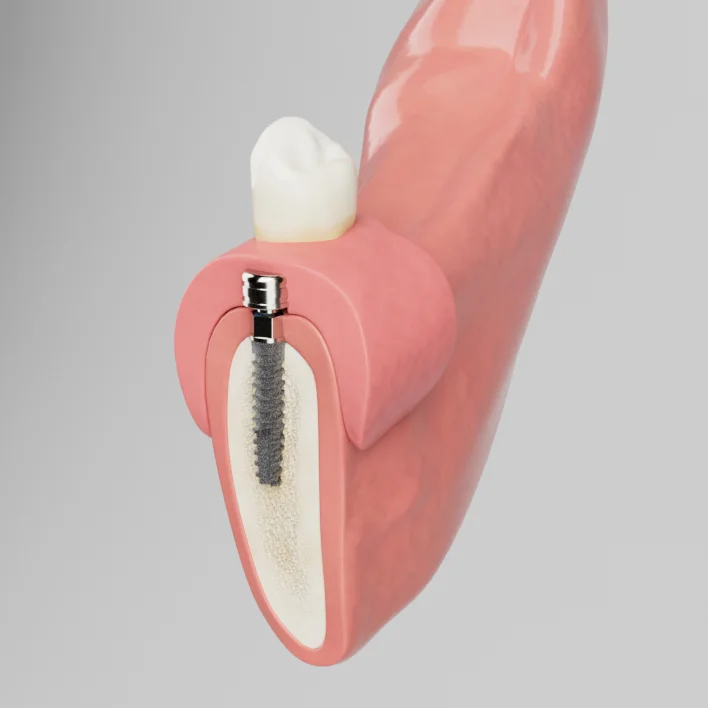

Mini implants (Small Diameter Implants, SDI) offer stable fixation as a supplement or alternative to conventional implants, particularly in cases of limited bone availability or for stabilizing removable dentures.

Success rate exceeds

percent
0

FAST AND TRAUMA-FREE SURGICAL PROCEDURES

No trauma

Immediate solution

Minimally invasive

Intelligent simplicity

Clinically proven results

Grade 4* quality, cold-worked titanium

High break resistance

Less chance of displacement

Raw processed surface
Sand-blasted surface
Passivated surface

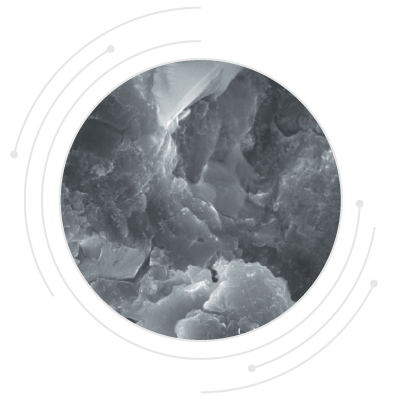

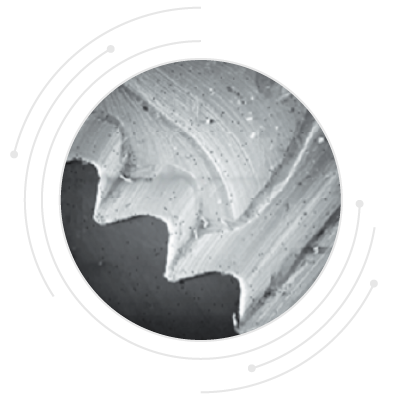

Surface microstructure of Minicare implants (MPS, SEM 500x)
Surface microstructure of Minicare implants (MPS, SEM 10.000x)

Surface

MINICARE implants are made of Titanium grade 4*, a strong, durable and highly biocompatible material.

MINICARE implant surface is of a hybrid type and is achived through a complex process with particles sandblasting and thermal etching SBTE Active (*SLA™) for the creation of micropores (sized 2-7 microns). This unique process creates a high surface area differentiation, increases the three-dimensional (3D) surface area and thus, enables a more intense absorption of blood and plasma directly into the implants micropores immediately after the implant is placed. The microstructure and roughness properties of the implant surface created by the sandblasting and double acid etching process is biocompatible and osseoconductive with immense influence on the initial contact with the host bone.

Minicare surface advantages

*Grade 4 Titanium: T60 commercial pure – Grade 4 T60 commercially pure titanium meets the requirements of ISO 5832-2 and the American Society for Testing and Materials (ASTM F67 3.7065) *SLA™ (Institue Straumann AG`s trademark)

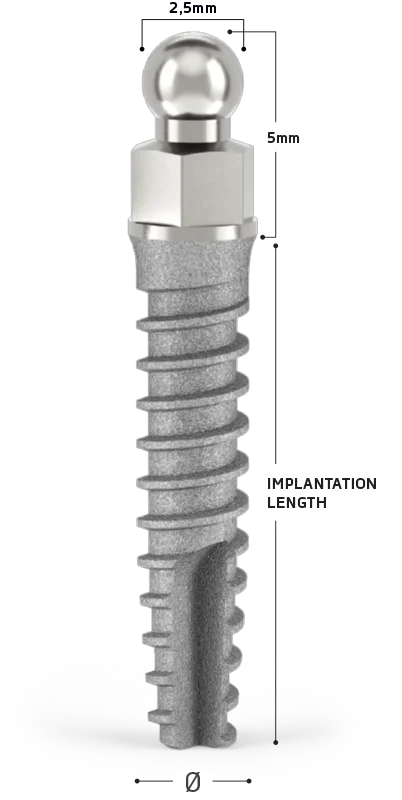

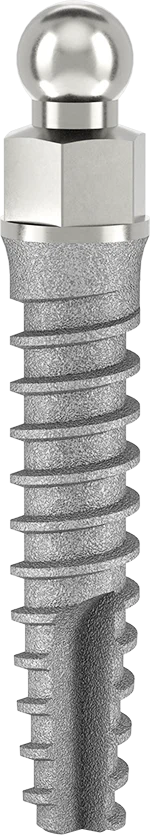

The 2.3 mm diameter Denti® Needle Implants are primarily recommended for D1 and D2 bone quality.

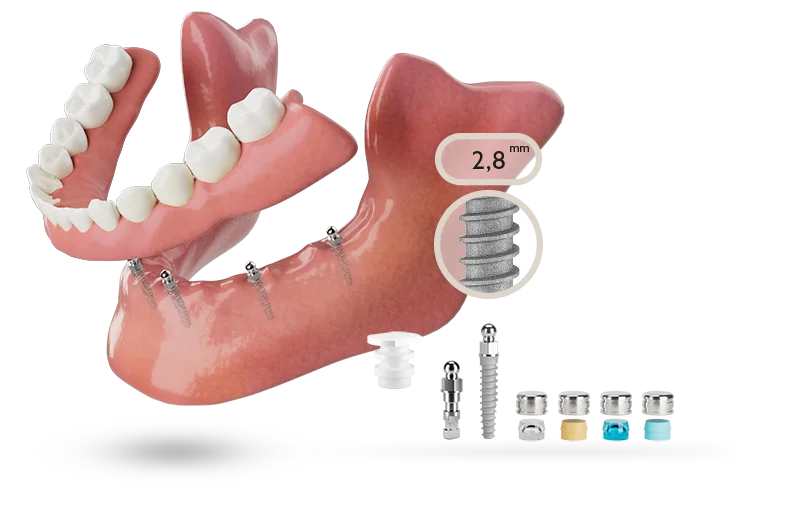

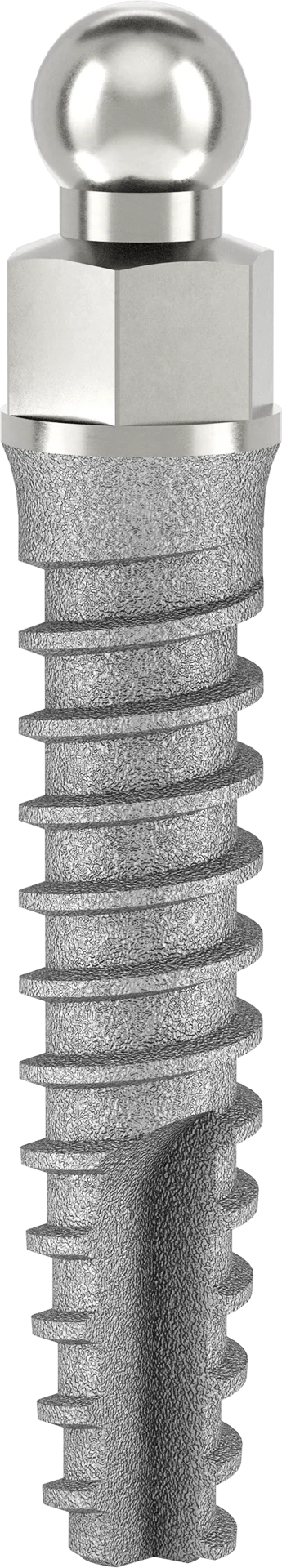

The 2.8 mm diameter
Denti® Needle Implants are primarily recommended for
D2 and D3 bone quality.

APPLICABLE

Can also be used as temporary or permanent support during the healing period in traditional implant-supported dental restorations. Simple and fast to apply.

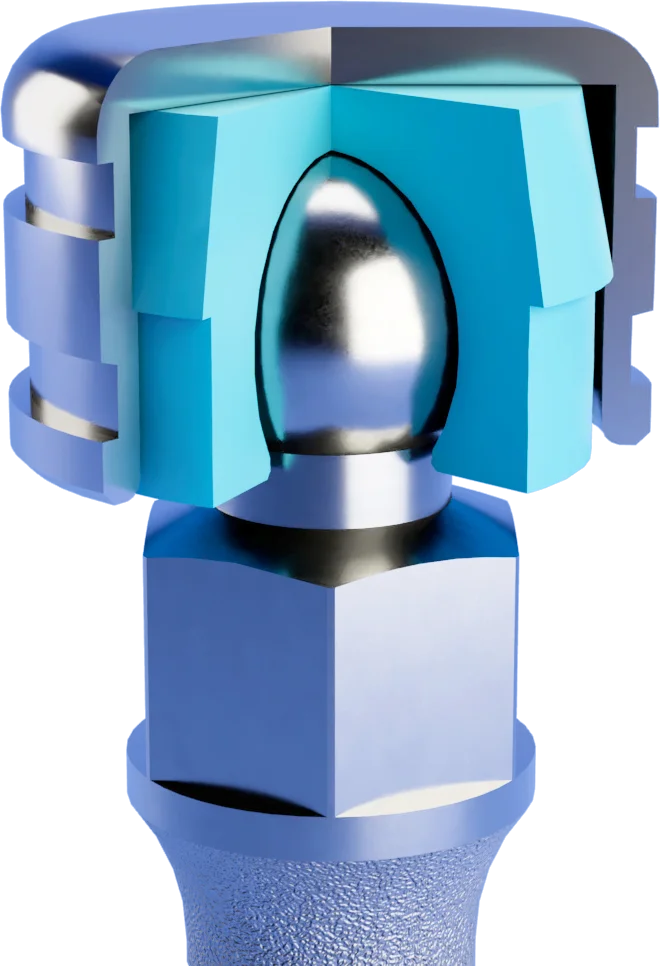

OT-CAP compatible

Every element of our products – from the titanium base material to the surface treatment – is manufactured in accordance with the most stringent quality assurance standards.
We work closely with our domestic and international professional partners to ensure that doctors can always apply proven solutions based on the latest scientific findings.

Prosthetics

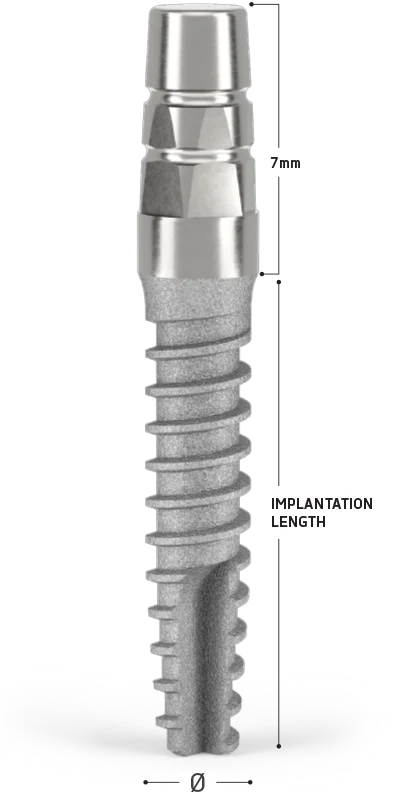

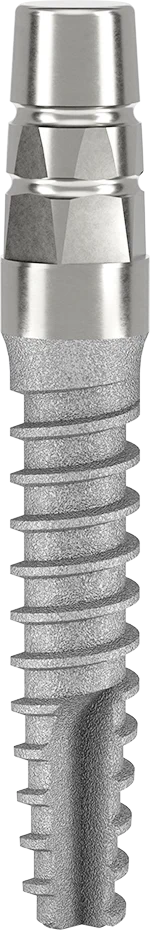

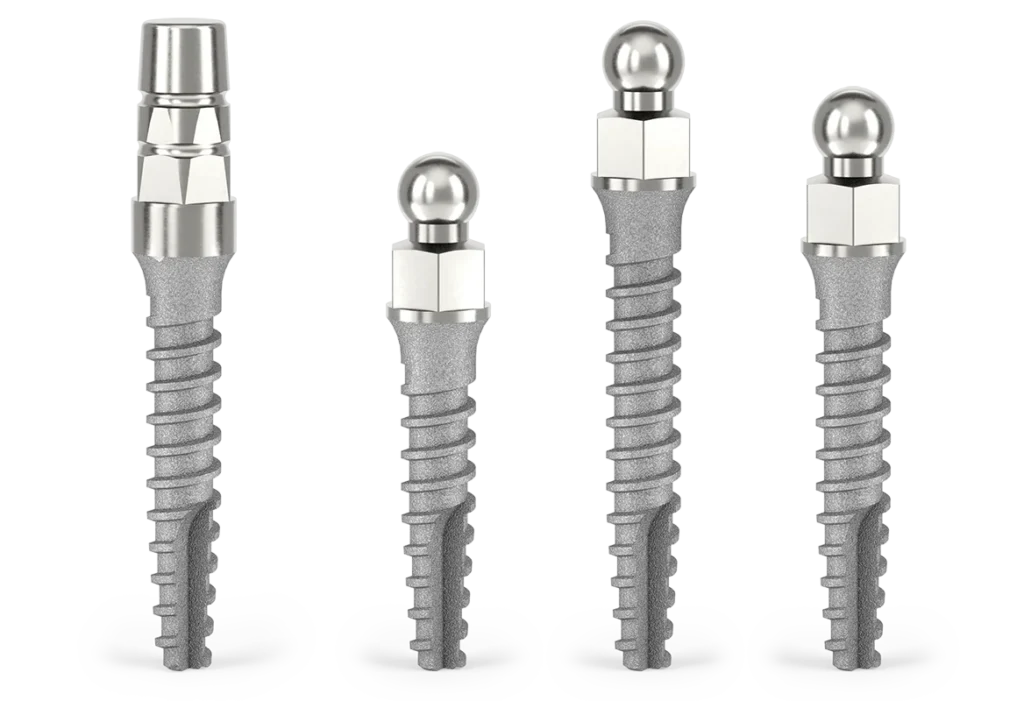

For ball-head Denti® Needle Implants, direct impression-taking is recommended. The tapered-head Denti® Needle Implant can tolerate minor angulation corrections (up to 7°) without preparation.

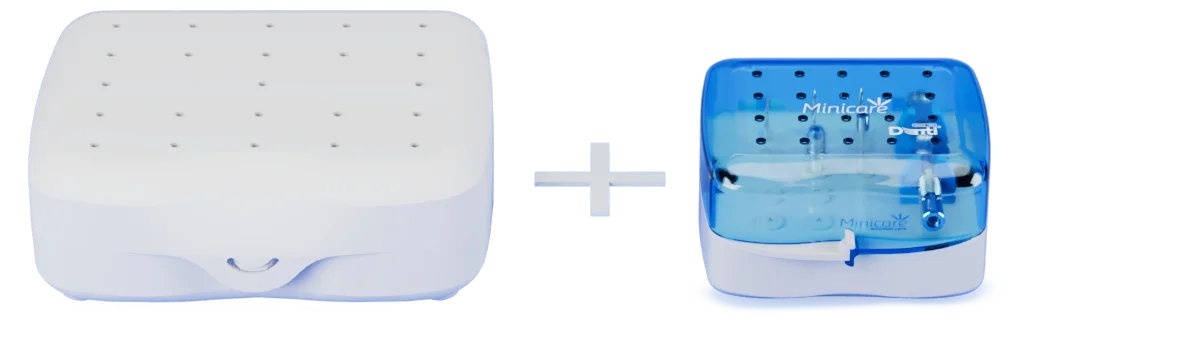

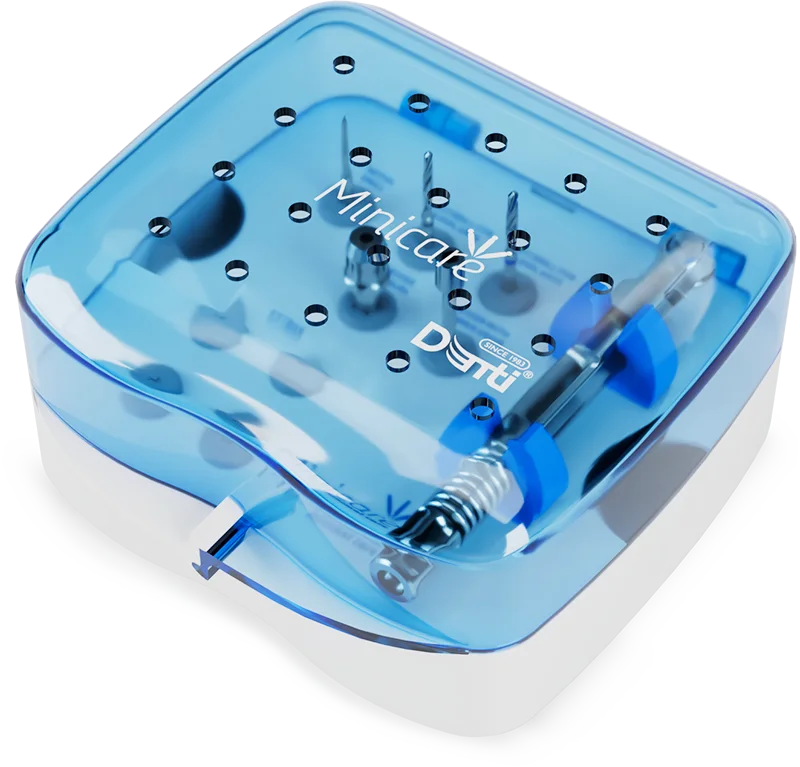

Surgical Tray and instruments
